A 40-year-old Sudanese female was referred to the magnetic resonance imaging (MRI) department presented with upper limbs weakness, urine incompetence and general weakness evaluation. Brain MRI axial and sagittal T1, T2, post contrast series, fluid attenuation inversion recovery (FLAIR), magnetic resonance angiography (MRA) were done.

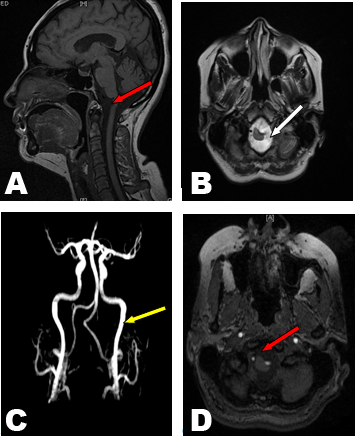

Images show anomalous left vertebral artery impressing into the cord substance at cervico–medullary junction causes cervico-medullary stenosis, no evidence of cerebral tonsil herniation or syrinx formation, in right parietal sub cortical white matter; two small high signal intensity foci were seen on T2 and FLAIR images suggestive of ischemic foci. Brain MRA confirmed malformation in the left vertebral artery, images of MRA showed the left vertebral artery entering foramen magna with medial tortuous kinking to the medulla oblongata.

Normal MRI scan appearance of the basal ganglia, thalami, internal and external capsule on both sides were detected also the ventricular system and extra axial cerebrospinal fluid (CSF) space are within normal limits, no mass effect or midline shift. Normal configuration of optic chiasm, optic nerves, pituitary gland and its stalk, Normal features of the cerebellar hemispheres, vermis, peduncles and brain stem with no abnormal intensities. Normal MRI features of the cerebello pontine angles and internal auditory canal, no evidence of space occupied lesion (SOL), fresh or sub dural collection was detected. (Figure 1)

Anatomical variation is defined as the normal flexibility in the topography and morphology of body structures. [1] Anomalous origin of vertebral arteries, is of relation with the embryologic development of the aortic arch and the brachiocephalic arteries. [2]

Anomalous origin of the vertebral artery is rare and is mostly seen in the left vertebral artery which originates directly from the aortic arch between the left common carotid artery and the left subclavian artery, [3] with a reported prevalence of 2.4–5.8% in a large autopsy series. [4]

Also anomalous origins of both vertebral arteries are uncommon. There are only unreliable cases in the radiology literature which discuss the conventional angiographic findings. [5] The advances in the imaging modalities in recent years have required more accurate knowledge and a greater understanding of the normal anatomy and variation and their clinical importance. [6] Studies were done to ensure the incidence of anomalous origin of the left vertebral artery citied in the radiology literature, and suggest that the current increased frequency of cross-sectional imaging; could elevate the observed incidence of this anomaly in practice. [7] With modern multi-detector computed tomography technology, supra aortic arteries can be well delineated with excellent image quality. Reporting of anomalous origin of the left vertebral artery is important; as the anomaly has significant clinical and surgical implications during endovascular treatment of aortic arch injuries and during angioplasty and stent procedures in conditions. [8]

Diagnostic cerebro vascular imaging can be achieved either by catheterization during angiography or by computed tomography angiography (CTA), MRA or Doppler sonography. [9] A thorough identification of anomalous origin of vertebral artery is paramount when performing both diagnostic and interventional angiography. If the vertebral arteries are not identified in their normal position, this can be misinterpreted as the vessel being congenitally absent. This information is important for endovascular or cardiothoracic surgeries in head and neck regions. [10]

Anomalous origin of the vertebral artery did not result in clinical symptoms, [11] [12] but In some cases, patients may complain of symptoms of dizziness. [13] Anomalous origin effects hemodynamic and may lead to intracerebral malformation. [10] The knowledge of a potential vertebral artery origin variant appears to be obligatory for planning vascular surgery and endovascular intervention. [14]

The true value of detecting anomalous origins of vertebral artery is the diagnostic gain prior to the surgery of supra aortic arteries. Using magnetic resonance imaging grants an excellent diagnostic value, as it is noninvasive with expansive imaging appearance of both vessels and soft tissues, it has been anticipated as diagnostic imaging modality for detection of anomalous vertebral artery.

1. Satti SR, Cerniglia CA, Koenigsberg RA. Cervical vertebral artery variations: An anatomic study. AJNR Am J Neuroradiol 2007 May;28(5):976-80.   [Pubmed]
2. Moore KL. The Developing Human. 3rd ed. Philadelphia: Saunders 1982.
3. Lemke AJ, Benndorf G, Liebig T, Felix R. Anomalous origin of the right vertebral artery: Review of the literature and case report of right vertebral artery origin distal to the left subclavian artery. AJNR Am J Neuroradiol 1999 Aug;20(7):1318-21.   [Pubmed]
4. Albayram S, Gailloud P, Wasserman BA. Bilateral arch origin of the vertebral arteries. AJNR Am J Neuroradiol 2002 Mar;23(3):455-8.   [Pubmed]
5. Lemke AJ, Benndorf G, Liebig T, Felix R. Anomalous origin of the right vertebral artery: Review of the literature and case report of right vertebral artery origin distal to the left subclavian artery. AJNR Am J Neuroradiol 1999 Aug;20(7):1318-21.   [Pubmed]
6. Bergman RA, Afifi AF, Miyauchi R, “Opus II: Cardiovascular system vertebral artery variations,” in Illustrated Encyclopedia of Human Anatomic Variation, Bergman RA, Afifi AF, Miyauchi R, Eds.
7. Braham van der Merwe, Christelle Ackermann, Shaun Scheepers, Sulaiman Moosa S Afr Is anomalous origin of the left vertebral artery indeed a rare finding? J Rad 2012;16(4):144-146.
8. Ka-Tak W, Lam WW, Yu SC. MDCT of an aberrant right subclavian artery and of bilateral vertebral arteries with anomalous origins. AJR Am J Roentgenol 2007 Mar;188(3):W274-5.   [CrossRef]   [Pubmed]
9. Albayram S, Gailloud P, Wasserman BA. Bilateral arch origin of the vertebral arteries. AJNR Am J Neuroradiol 2002 Mar;23(3):455-8.   [Pubmed]
10. Sadaf Nasir, Manzar Hussain, Sikandar Ali Khan, Muhammad Ayub Mansoor, Salman Sharif. Anomalous origin of right vertebral artery from right external carotid artery.Journal of the College of Physicians and Surgeons Pakistan 2010 Mar;20(3):208-10.   [CrossRef]   [Pubmed]
11. Ka-Tak W, Lam WW, Yu SC. MDCT of an aberrant right subclavian artery and of bilateral vertebral arteries with anomalous origins. AJR Am J Roentgenol 2007 Mar;188(3):W274-5.   [CrossRef]   [Pubmed]
12. Lemke AJ, Benndorf G, Liebig T, Felix R. Anomalous origin of the right vertebral artery: Review of the literature and case report of right vertebral artery origin distal to the left subclavian artery. AJNR Am J Neuroradiol 1999 Aug;20(7):1318-21.   [Pubmed]
13. Nishijima M, Harada J, Nogami K, Endo S, Takaku A. Operative correction of kinking and coiling at the origin of vertebral artery and stellate ganglionectomy in patients with severe vertigo and dizziness. No Shinkei Geka 1989 Mar;17(3):255-61. [Article in Japanese].   [Pubmed]
14. Albayram S, Gailloud P, Wasserman BA. Bilateral arch origin of the vertebral arteries. AJNR Am J Neuroradiol 2002 Mar;23(3):455-8.   [Pubmed]
