Case Report

Takotsubo cardiomyopathy presenting as pulseless electrical activity
Muhammad Faisal Khilji1, Muhammad Mujtaba Shaikh2
1Sultan Qaboos University Hospital, Specialist, Emergency Medicine, P. O. Box 38, P.C. 123, AL-Khod, Muscat, Sultanate of Oman
2Sultan Qaboos University Hospital, Senior Specialist, Department of Medicine(Cardiology), P. O. Box 38, P.C. 123, AL-Khod, Muscat, Sultanate of Oman

Article ID: 100921Z01MK2018
doi: 10.5348/100921Z01MK2018CR

Corresponding Author:
Muhammad Faisal Khilji,
Sultan Qaboos University Hospital,
Specialist, Emergency Medicine,
P. O. Box 38, P.C. 123, AL-Khod, Muscat, Sultanate of Oman

Access full text article on other devices

  Access PDF of article on other devices

[HTML Abstract]   [PDF Full Text] [Print This Article]
[Similar articles in PubMed] [Similar articles in Google Scholar]



How to cite this article
Khilji MF, Shaikh MM. Takotsubo cardiomyopathy presenting as pulseless electrical activity. Int J Case Rep Images 2018;9:100921Z01MK2018.


ABSTRACT

Introduction: Takotsubo cardiomyopathy (TCM) is a rare condition, clinically presenting as myocardial infarction with normal coronaries and characterized by reversible apical ballooning of the left ventricle.

Case Report: We present a case of a 40-year-old female presenting to the Emergency department (ED) of a tertiary care hospital after she collapsed suddenly and became unresponsive at the triage. She was having central chest pain before her collapse. Immediate Cardiopulmonary Resuscitation (CPR) was provided. Her rhythm was pulseless electrical activity (PEA) during the CPR. After two cycles of CPR she achieved ROSC (Return of Spontaneous Circulation) with electrocardiograph (ECG) showing ST elevation in lateral and inferior lead. She was taken to the catheterization laboratory immediately where her coronary arteries were found normal on coronary angiography with left ventricular apical hypokinesis in the shape of takotsubo (a Japanese octopus trapping fishing pot). Patient was discharged after one week of uneventful hospital stay. Her subsequent echocardiography after two months showed almost complete recovery of left ventricular function proving it to be a case of Takotsubo cardiomyopathy.

Conclusion: TCM should be suspected in all females with acute myocardial infarction.

Keywords: Chest pain, Coronary angiography, Myocardial infarction, Takotsubo cardiomyopathy


INTRODUCTION

Takotsubo cardiomyopathy was first described in 1990 by Sato et al in Japan [1], [2], [3], [4], [5], [6], [7]. It presents as clinical picture of myocardial infarction characterized by apical ballooning of left ventricle. Different terms used for this condition are stress-induced cardiomyopathy, ampulla cardiomyopathy, broken heart syndrome and transient left ventricular apical ballooning syndrome. Takotsubo is a Japanese word meaning “octopus pot”, which is a wide based narrow neck pot to catch octopus [1]. In TCM left ventricle appears like this pot. Clinical presentation of TCM is usually acute chest pain with electrocardiograph showing ST elevation, mainly in anterior leads. Coronary angiography shows normal coronary vessels with ballooning of left ventricle apex resolving in subsequent weeks. Emotional and physical stress has relationship with the development of this condition [8]. It is important to consider this diagnosis in patients presenting as acute coronary syndrome (ACS) in Emergency Department. This case report highlights a case of a 40-year-old lady that presented to the emergency department of a tertiary care hospital with cardiac arrest of PEA and later found to have TCM. This reported is the first case report of TCM presenting as PEA.


CASE REPORT

We present a case of a 40-year-old female, with no atherogenic risk factors, presented to the ED of a tertiary care hospital. She was having central chest pain for the last one day without any emotional or physical trigger. Upon arrival to ED, she collapsed suddenly and became unresponsive, at the triage. There was no respiratory activity and central pulses were absent. Basic life support was started immediately and patient shifted to resuscitation area where advanced life support with cardiopulmonary resuscitation (CPR) was provided. Her cardiac rhythm on monitor was pulse less electrical activity (PEA). Blood glucose was normal. Return of spontaneous circulation (ROSC) with return of conscious level was achieved after two cycles of CPR. Upon ROSC her BP was 141/112 mmHg with regular heart rate of 140/min. ECG showed ST elevation in inferior and lateral leads (Figure 1). Bedside echo showed apical hypokinesia without any evidence of pericardial effusion, right ventricular strain or aortic dissection. Impression of inferio -lateral myocardial infarction was made. Oral Aspirin 300 mg, Clopedogrel 600mg and intravenous Heparin 5000 IU (international units) were given. Cardiology consult was generated and patient was taken to catheterization laboratory. Her coronary arteries were normal in angiography (Figure 2A, B). Left ventriculography showed hyper dynamic basal myocardial segments with apical akinesis, in the shape of a “takotsubo” with estimated left ventricular ejection fraction of 25% (Figure 2C and D). During angiography patient went into cardiac arrest again but ROSC was achieved after three minutes of CPR. Temporary pacing wire was left as backup after angiography, at rate of 80/min, as patient went into junctional rhythm post ROSC. Full blood count, renal functions and electrolytes were normal. Serial troponin –I reached a peak of 30μg/ml and then gradually became normal. Patient later recovered uneventfully and was discharged after one week of hospital stay. Her follow up echocardiography after two months showed near normal improvement in her left ventricular function with ejection fraction of 40% to 45% proving it to be a case of Takotsubo cardiomyopathy.


Cursor on image to zoom/Click text to open image

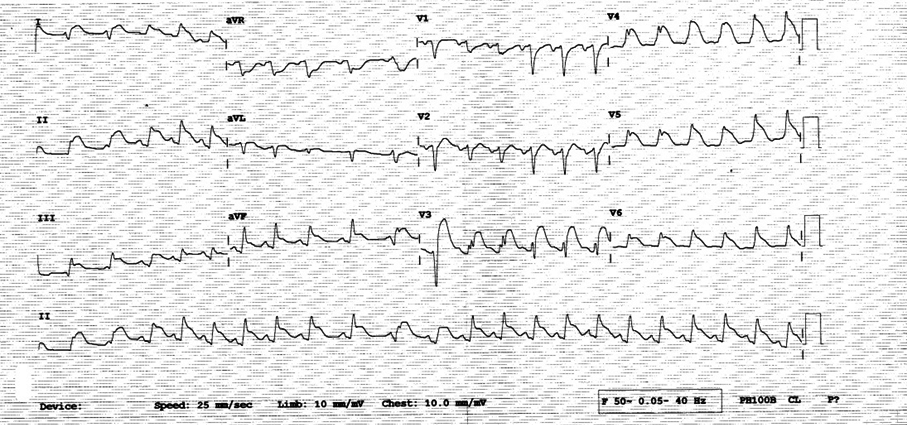

Figure 1: ECG showing ST elevation in anterior and inferior leads.


Cursor on image to zoom/Click text to open image
Figure 2: Emergency cardiac catheterization showing normal left (A) and right (B) coronary arteries. Left ventriculography with diastolic phase (C) and systolic phase showing apical akinesis, in the configuration of a “tako-tsubo” (D).


DISCUSSION

TCM is a condition characterized by reversible systolic dysfunction of left ventricle with apical hypokinesia [9]. It can present from first to ninth decade of life and constitutes about 1% to 2% of patients presenting with ACS [10], [11]. Most of the TCM patients are post-menopausal females with less than 10% of the cases are males. The first large TCM Japanese series showed 76 females, 12 male patients with median age of 67 ± 13 years [11]. Chest pain was the most common presenting symptom, present in 70% to 90% of the patients as in our case also. Other symptoms were shortness of breath and pulmonary edema. Cardiogenic shock, ventricular arrhythmias and cardiac arrest are rare presentations [11]. Our case presented as cardiac arrest. Not always but usually a psychological, emotional or physical trigger or any of their combinations are triggering factor [10]. Anxiety or pain related to medical procedure, breaking of bad news, or sudden surprises are few reported precipitants of TCM [8]. Akinesia of apical or mid ventricular area is typically present but other wall motion abnormalities could also be seen. TCM of only mid ventricular area without apical involvement is also reported [12]. Although several cases were reported with this disease but no case has been reported presenting to ED as pulse less electrical activity (PEA), requiring cardiopulmonary resuscitation (CPR). There is no consensus but modified Mayo criteria, is used for the diagnosis, which includes Transient dyskinesia, hypokinesia or akinesia of left ventricle with or without apical involvement usually associated with physical or emotional trigger. Coronary angiography shows normal vessels. New ECG abnormalities, ST segment elevation with or without T wave inversion, or slightly elevated troponins. No evidence of pheochromocytoma or myocarditis [13]. For precise differentiation between takotsubo myocarditis and myocardial infarction, magnetic resonance imaging (MRI) and myocardial histopathological studies can be used [14]. Takotsubo cardiomyopathy has no specific treatment, however pulmonary edema is treated with upright position, oxygen, diuretics and nitrates. Non-invasive ventilation can be used according to the condition [15]. Intra-aortic balloon pump is used in cases of shock. Inotropes are generally not indicated. Arrhythmias due to QT prolongation can be treated with magnesium sulphate. Use of aspirin and heparin is controversial. Although left ventricular rupture has been reported secondary to takotsubo cardiomyopathy, the prognosis is generally good. The main complications are heart failure and pulmonary edema.


CONCLUSION

Although well known in cardiology, the condition should be considered in patients presenting to ED as myocardial infarction or in cardiac arrest, especially in females.


REFERENCES
  1. Sato H, Tateishi H, Dote K, Uchida T, Ishihara M. Takotsubo like left ventricular dysfunction due to multivesselcoronary spasm. In: Kodama K, Haze K, Hori M, editors. Clinical Aspect of Myocardial Injury: From Ischemia to Heart Failure. Tokyo, Japan: Kagakuhyoronsha Publishing Co; 1990. p. 56–64.    Back to citation no. 1
  2. Bybee KA, Prasad A. Stress-related cardiomyopathy syndromes. Circulation 2008 Jul 22;118(4):397–409.   [CrossRef]   [PubMed]    Back to citation no. 2
  3. Akashi YJ, Goldstein DS, Barbaro G, Ueyama T. Takotsubo cardiomyopathy: A new form of acute, reversible heart failure. Circulation 2008 Dec 16;118(25):2754–62.   [CrossRef]   [PubMed]    Back to citation no. 3
  4. Camara MAC, Dalia CG, Gomez FH. Sindrome de Takotsubo, reporte de dos casos y revision de la literature. Rev Assoc Mex Med Crity Ter Int 2012;26:51–5.    Back to citation no. 4
  5. Redfors B, Shao Y, Lyon AR, Omerovic E. Diagnostic criteria for takotsubo syndrome: A call for consensus. Int J Cardiol 2014 Sep;176(1):274–6.   [CrossRef]   [PubMed]    Back to citation no. 5
  6. Sharkey SW, Windenburg DC, Lesser JR, et al. Natural history and expansive clinical profile of stress (tako-tsubo) cardiomyopathy. J Am Coll Cardiol 2010 Jan 26;55(4):333–41.   [CrossRef]   [PubMed]    Back to citation no. 6
  7. Templin C, Ghadri JR, Diekmann J, et al. Clinical features and outcomes of takotsubo (stress) cardiomyopathy. N Engl J Med 2015 Sep 3;373(10):929–38.   [CrossRef]   [PubMed]    Back to citation no. 7
  8. Sharkey SW, Lesser JR, Maron BJ. Cardiology patient page. Takotsubo (stress) cardiomyopathy. Circulation 2011 Nov 1;124(18):e460–2.   [CrossRef]   [PubMed]    Back to citation no. 8
  9. Scantlebury DC, Prasad A. Diagnosis of takotsubo cardiomyopathy. Circ J 2014;78(9):2129–39.   [CrossRef]   [PubMed]    Back to citation no. 9
  10. Tsuchihashi K, Ueshima K, Uchida T, et al. Transient left ventricular apical ballooning without coronary artery stenosis: A novel heart syndrome mimicking acute myocardial infarction. Angina pectoris-myocardial infarction investigations in Japan. J Am Coll Cardiol 2001 Jul;38(1):11–8.   [PubMed]    Back to citation no. 10
  11. Parodi G, Del Pace S, Carrabba N, et al. Incidence, clinical findings, and outcome of women with left ventricular apical ballooning syndrome. Am J Cardiol 2007 Jan 15;99(2):182–5.   [CrossRef]   [PubMed]    Back to citation no. 11
  12. Steen H, Merten C, Katus HA, Giannitsis E. Images in cardiovascular medicine. A rare form of midventricular Tako-Tsubo after emotional stress followed up with magnetic resonance imaging. Circulation 2006 Aug 15;114(7):e248.   [CrossRef]   [PubMed]    Back to citation no. 12
  13. Prasad A, Lerman A, Rihal CS. Apical ballooning syndrome (Tako-Tsubo or stress cardiomyopathy): A mimic of acute myocardial infarction. Am Heart J 2008;155:408–17.   [CrossRef]    Back to citation no. 13
  14. Syed IS, Prasad A, Oh JK, et al. Apical ballooning syndrome or aborted acute myocardial infarction? Insights from cardiovascular magnetic resonance imaging. Int J Cardiovasc Imaging 2008 Dec;24(8):875–82.   [CrossRef]   [PubMed]    Back to citation no. 14
