Case Report

Diaphragmatic hernia following a liver resection: A rare cause of bowel obstruction
Nordjoe Yaotse Elikplim1, Outznit Mustapha1, Laamrani Fatima Zahra1, Jroundi Laila1
1Emergency Radiology Department, Centre Hospitalo-Universiataire Ibn Sina, Rabat, Morocco

Article ID: 100915Z01NE2018
doi: 10.5348/100915Z01NE2018CR

Corresponding Author:
Nordjoe Yaotse Elikplim,
1471 Hay Al Maghrib Al ArabiMassira II Etg03 Appt03 12000 Temara,
Morocco

Access full text article on other devices

  Access PDF of article on other devices

[HTML Abstract]   [PDF Full Text] [Print This Article]
[Similar article in PubMed] [Similar article in Google Scholar]



How to cite this article
Elikplim NY, Mustapha O, Zahra LF, Laila J. Diaphragmatic hernia following a liver resection: A rare cause of bowel obstruction. Int J Case Rep Images 2018;9:100915Z01NE2018.


ABSTRACT

Introduction: Delayed presentation of an iatrogenic diaphragmatic injury is rare. We report the case of a diaphragmatic hernia associated with a bowel obstruction occurring as a delayed complication of a right liver resection. This report emphasizes the rareness of such surgical outcome and the main CT-scan features of a diaphragmatic rent are discussed along with it.

Case Report: A 30-year-old female was admitted to our emergency department with a clinical acute bowel obstruction syndrome. A chest and abdomen CT-scan revealed an ascent and strangulation by the entanglement of some jejunal loops through a right diaphragmatic hernia. A compression of the lung and the mediastinum were also observed. The patient was admitted to surgery. The non-viable ischemic loops were cut off, and the diaphragmatic defect is repaired after the reintegration of the abdominal structures and patient recovered uneventfully.

Conclusion: Acquired diaphragmatic hernias are very rarely present on the right side. The CT scan findings suggestive of a diaphragmatic rent are highlighted and they should be carefully looked out for by the radiologist.

Keywords: Diaphragmatic hernia, Liver surgery


INTRODUCTION

Acquired diaphragmatic hernias are more commonly due to traumatic event, such as severe chest trauma [1]. Surgical diaphragmatic injuries are frequently an intra-operative findings and are immediately taken care of by the surgeon. However, in a lesser rate, undiagnosed iatrogenic diaphragmatic injuries are revealed by an acquired hernia with or without complications. Diaphragmatic hernia after liver resection is rare, with an incidence ranging from 0.6% to 6.2% of the series described in the literature [2]. We report a case of a right diaphragmatic hernia following the resection of the right hepatic lobe, and revealed by a bowel obstruction syndrome two years after the surgery. This report emphasizes the rareness of such surgical outcome and the main CT-scan features of a diaphragmatic rent are discussed along with it.


CASE REPORT

A 30-year-old female was admitted to our emergency department with abdominal pain, shortness of breath, vomiting and a cessation of the exhaust gas and stool since four days. Clinical examination revealed nothing more than a dehydration and an abdominal distension. No sign of vital distress was found. Laboratory findings revealed no major abnormalities: Leukocytes count 8.39x103 cells/mm3; hemoglobin 13 g/dl. Blood urea nitrogen, creatinine and C-Reactive Protein were normal while levels of sodium 138 mmol/l, potassium 3,1mEq/l, chloride 95 mEq/l, bicarbonates 22mEq/l. Two year prior to these events, the patient underwent a surgical procedure, mainly, a right lob resection of the liver for a giant echinococcal cyst. An intestinal occlusion syndrome was diagnosed. A chest and abdomen CT-scan was performed, revealing an ascent and strangulation by the entanglement of some jejunal loops through a right diaphragmatic hernia (Figure 1). There was a thickening of the wall of the herniated intestinal structures. Right lung passive atelectasis by compression, a pleural effusion of moderate abundance and compression of the mediastinum were also present. The patient was admitted to surgery. Intra operative findings revealed the diaphragmatic defect and some ischemic intestinal loops Figure 2 (A and B). The non-viable ischemic loops were cut off, and the diaphragmatic defect was closed after the reintegration of the abdominal structures. The patient had an uneventful postoperative recovery.


Cursor on image to zoom/Click text to open image

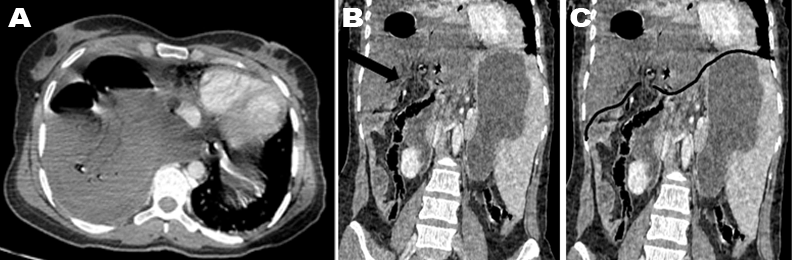

Figure 1: Iodine enhanced thoracic & abdominal CT-scan (A) Axial slice showing the herniated intestinal loops in the right hemi-thorax, with pleural effusion and compression of the mediastinum. The herniated loops are very mildly enhanced if none at all and located against the posterior ribs which represent the “fallen sign”. (B) Direct discontinuity of the right diaphragm with the “collar sign” [black bold arrow]. (C) The diaphragm is highlighted in black for better visualization of the discontinuity.


Cursor on image to zoom/Click text to open image
Figure 2 (A and B): Intra operative findings: Diaphragmatic rent (black bold arrow) (A). Ischemic non-viable intestinal loops (B).


DISCUSSION

A diaphragmatic hernia is a herniation of abdominal content into the thoracic cavity through normal and weakened apertures or a rent of the diaphragm. It can either be congenital or acquired. Acquired diaphragmatic hernias can either be iatrogenic or non-iatrogenic. Non-iatrogenic ones arise, in nearly all cases, from a diaphragmatic tear due a major trauma. Iatrogenic diaphragmatic hernias are a complication of any hospital management involving a harmful event on the diaphragm.

Iatrogenic diaphragmatic injuries can occur in numerous situations, leading afterward to diaphragmatic hernia. The literature contains some examples: after surgery most of the times [2], [3] , [4], [5], [6], misplaced thoracic drain [7], and rarely from cardiopulmonary resuscitation [8].

Acquired diaphragmatic hernias are commonly due to traumatic disruptions of the diaphragm, following a severe trauma [1], [2]. They are mainly due to penetrating than blunt trauma with a 2:1 ratio [9], [10]. In these cases, the hernia is typically discovered in the course of the hospital stay but it can be delayed. Iatrogenic-related diaphragmatic hernias are less common. Surgical diaphragmatic injuries are nearly, in all cases, diagnosed intraoperatively and repaired by the surgeon who has to be thorough about the assessment of the diaphragm during the procedure. However, some of those injuries can be missed, leading to complications.

Francesco Esposito [2] conducted a study, including a liver surgery performed for four years, to evaluate the prevalence of right diaphragmatic hernias following liver resection. The incidence in their study was 2.3 % (3/131) which is in accordance with the literature (< 6.2% after liver resection). Moreover, in their study, only one patient underwent an emergency surgery for bowel obstruction. Thus, the rareness of this surgical outcome could be illustrated.

The rate of a late presentation of an iatrogenic diaphragmatic hernia is disparate ranging from 5% to 62% of the cases [3] , with delayed presentation occurring as late as many months or years after the supposedly harmful event [2], [3],[11], [12], [13].

Since the left diaphragm is more prone to injury than the right counterpart, acquired hernias are far more frequent on the left side. Aggravation of a small diaphragmatic rent is explained by the followings: a diaphragmatic wound, even small, cannot easily heal because of the diaphragm involvement in respiration, phonation, etc. A small rent could be stretched by any factor that can increase abdominal pressure such as cough or sport activities.

Radiological diagnosis of diaphragmatic rupture is not simple because of the thinness of the diaphragm and associated lesions which may contribute to hide the main region of interest. In the acute settings, CT-scan is the best imaging method of exploration, because it is available and high volume can be quickly explored with new generation multi-slice machines. Frontal and sagittal reformatted images are very useful, notably in very small injuries.

There are many CT findings suggestive of a diaphragmatic rupture described in the literature. These descriptions were made for traumatic diaphragmatic ruptures [14], [15], but they can be transposed to diaphragmatic hernias, may they be iatrogenic or not as listed below:

  • Direct discontinuity of the diaphragm: It is seen in 71–73% of cases with a sensitivity of 73% and specificity of 90%. However, the diagnostic of a diaphragmatic tear should not be solely based on this finding because there is some false-positives and false negatives. In fact, the direct discontinuity is difficult to see on the right hemi-diaphragm, when there is an association with atelectasis or pleural effusion and in the case of small tears.
  • A local thickening of the edges of the rent should be looked out for if the direct discontinuity is seen. It represents a retraction of the diaphragmatic muscular fibers or a hematoma.
  • Intrathoracic herniation of abdominal contents: It has a sensitivity of 55% and a specificity of 100%.
  • Collar sign: It is a consequence of the intrathoracic ascent of the abdominal contents. It is a waist-like constriction of the herniating hollow viscus at the site of the diaphragmatic rent. For example, it translates in a mushroom-like aspect of the hepatic dome in the case of a right hemi diaphragm hernia with the ascent of the liver.
  • Fallen sign / dependent viscera sign: As, the herniated organs are no longer supported by the diaphragm posteriorly, those organs fall to dependent position, against the posterior ribs.
  • Sinus cut off sign: Pleural effusion is commonly associated with diaphragmatic traumatic ruptures and can obscure the CT signs in those patients. In those cases, the lateral or medial costo-phrenic sulcus are interrupted or blunted abruptly, due to impinging intra-abdominal viscera, thus, representing the newly described sinus cut off sign.

Chest X-ray is not precise but can provide some insights on the presence of a diaphragmatic hernia. MRI can be a useful tool in some cases where there is still doubts on the CT scan. However, this discussion is not that relevant in case of a herniation of abdominal contents because it became obvious and we don’t really need subtle signs to achieve the proper diagnosis.

Surgery is the mainstay therapy of a diaphragmatic hernia even in asymptomatic patients. Two main approaches are described and being used. The surgical team can choose from either the thoracotomy approach or the abdominal approach. A third way of repairing the diaphragm is through laparoscopy, which is being used in left diaphragmatic hernias [16], [17]. Every one of these methods has their advantages and flaws. For example, the thoracotomy approach is considered by many authors to be the elective approach, and yet, it is proven to be associated with a longer hospital stay and a high risk of pulmonary embolism [18]. In our case, the surgical team chose the laparotomy approach, using a right subcostal incision.


CONCLUSION

Acquired diaphragmatic hernias are very rarely present on the right side. There are many CT scan findings suggestive of the diagnosis as described in the literature and they should be carefully looked out for by the radiologist. Surgery is the mainstay therapy of diaphragmatic hernias. The originality of our case lies in the fact that late presentation of a diaphragmatic hernia in the right side,associated with a bowel obstruction is a rare outcome of whether a traumatic event or a surgical procedure.


REFERENCES
  1. Crandall M, Popowich D, Shapiro M, West M. Posttraumatic hernias: Historical overview and review of the literature. Am Surg 2007 Sep;73(9):845–50.   [PubMed]    Back to citation no. 1
  2. Esposito F, Lim C, Salloum C, et al. Diaphragmatic hernia following liver resection: Case series and review of the literature. Ann Hepatobiliary Pancreat Surg 2017 Aug;21(3):114–21.   [CrossRef]   [PubMed]    Back to citation no. 2
  3. Soufi M, Meillat H, Le Treut YP. Right diaphragmatic iatrogenic hernia after laparoscopic fenestration of a liver cyst: Report of a case and review of the literature. World J Emerg Surg 2013 Jan 3;8(1):2.   [CrossRef]   [PubMed]    Back to citation no. 3
  4. Dell'Abate P, Bertocchi E, Dalla Valle R, Viani L, Del Rio P, Sianesi M. Iatrogenic diaphragmatic hernia following laparoscopic left colectomy for splenic flexure cancer an unusual complication. Ann Ital Chir 2016 Nov 3;87.   [PubMed]    Back to citation no. 4
  5. Jeng KS, Huang CC, Lin CK, et al. Early incarcerated diaphragmatic hernia following right donor hepatectomy: A case report. Transplant Proc 2015 Apr;47(3):815–6.   [CrossRef]   [PubMed]    Back to citation no. 5
  6. Vernadakis S, Paul A, Kykalos S, Fouzas I, Kaiser GM, Sotiropoulos GC. Incarcerated diaphragmatic hernia after right hepatectomy for living donor liver transplantation: Case report of an extremely rare late donor complication. Transplant Proc 2012 Nov;44(9):2770–2.   [CrossRef]   [PubMed]    Back to citation no. 6
  7. Kong VY, Clarke DL. The spectrum of visceral injuries secondary to misplaced intercostal chest drains: Experience from a high volume trauma service in South Africa. Injury 2014 Sep;45(9):1435–9.   [CrossRef]   [PubMed]    Back to citation no. 7
  8. Dupont V, Rougé-Maillart C, Gaudin A, Jeanneteau A, Jousset N, Malbranque S. Left diaphragm laceration due to cardiopulmonary resuscitation. J Forensic Sci 2016 Jul;61(4):1135–8.   [CrossRef]   [PubMed]    Back to citation no. 8
  9. Gao JM, Du DY, Li H, et al. Traumatic diaphragmatic rupture with combined thoracoabdominal injuries: Difference between penetrating and blunt injuries. Chin J Traumatol 2015;18(1):21–6.   [CrossRef]   [PubMed]    Back to citation no. 9
  10. Lu J, Wang B, Che X, et al. Delayed traumatic diaphragmatic hernia: A case-series report and literature review. Medicine (Baltimore) 2016 Aug;95(32):e4362.   [CrossRef]   [PubMed]    Back to citation no. 10
  11. Johnson CD, Ellis H. Acquired hernias of the diaphragm. Postgrad Med J 1988 Apr;64(750):317–21.   [CrossRef]   [PubMed]    Back to citation no. 11
  12. Lal S, Kailasia Y, Chouhan S, Gaharwar A, Shrivastava G. Delayed presentation of post traumatic diaphragmatic hernia. J Surg Case Rep 2011 Jul 1;2011(7):6.   [CrossRef]   [PubMed]    Back to citation no. 12
  13. Al Skaini MS, Sardar A, Haroon H, Al Ghamdi SM, Homran A, Rabie ME. Traumatic diaphragmatic hernia: Delayed presentation with tension viscerothorax–lessons to learn. Ann R Coll Surg Engl 2013 Mar;95(2):e27–9.   [CrossRef]   [PubMed]    Back to citation no. 13
  14. Iochum S, Ludig T, Walter F, Sebbag H, Grosdidier G, Blum AG. Imaging of diaphragmatic injury: A diagnostic challenge? Radiographics 2002 Oct;22 Spec No:S103–16.   [CrossRef]   [PubMed]    Back to citation no. 14
  15. Kaya SO, Karabulut N, Yuncu G, Sevinc S, Kiroglu Y. Sinus cut-off sign: A helpful sign in the CT diagnosis of diaphragmatic rupture associated with pleural effusion. Eur J Radiol 2006 Aug;59(2):253–6.   [CrossRef]   [PubMed]    Back to citation no. 15
  16. Suh Y, Lee JH, Jeon H, Kim D, Kim W. Late onset iatrogenic diaphragmatic hernia after laparoscopy-assisted total gastrectomy for gastric cancer. J Gastric Cancer 2012 Mar;12(1):49–52.   [CrossRef]   [PubMed]    Back to citation no. 16
  17. Shah S, Matthews BD, Sing RF, Heniford BT. Laparoscopic repair of a chronic diaphragmatic hernia. Surg Laparosc Endosc Percutan Tech 2000 Jun;10(3):182–6.   [PubMed]    Back to citation no. 17
  18. Paul S, Nasar A, Port JL, et al. Comparative analysis of diaphragmatic hernia repair outcomes using the nationwide inpatient sample database. Arch Surg 2012 Jul;147(7):607–12.   [CrossRef]   [PubMed]    Back to citation no. 18
