Case Report

Multiple primary cancers in a patient and CT scan features of inferior vena cava leiomyosarcoma: A case report
Muhammad Imran Butt1, Muhammad Asif Shahzad2
1Department of Medicine Sir Charles Gairdner Hospital, Hospital Avenue, Nedlands, Perth WA 6009, Australia.
2Department of Medicine Lyell McEvin Hospital, Haydown Rd, Elizabeth Vale, SA 5112, Australia.

doi:10.5348/ijcri-201611-CR-10598

Address correspondence to:
Muhammad Imran Butt
Department of Medicine Sir Charles Gairdner Hospital
Hospital Avenue, Nedlands, Perth WA 6009
Australia

Access full text article on other devices

  Access PDF of article on other devices

[HTML Abstract]   [PDF Full Text] [Print This Article]
[Similar article in Pumed] [Similar article in Google Scholar]


How to cite this article
Butt MI, Shahzad MA. Multiple primary cancers in a patient and CT scan features of inferior vena cava leiomyosarcoma: A case report. Int J Case Rep Images 2016;7(1):51–54.


Abstract
Introduction: Primary inferior vena cava (IVC) sarcoma is a rare tumor of mesenchymal origin arising from the tunica media of inferior vena cava. It accounts for about 0.5% of all soft tissue sarcomas and there are less than 300 cases reported in literature [1][2]. It is the most common vascular sarcoma [3]. To the best of our knowledge, it has not been reported in combination with any other primary malignancy.
Case Report: An 86-year-old female with breast cancer presented with progressive development of bilateral lower limbs edema which was attributed to a palpable abdominal mass. Computed tomography scan revealed a large mass in her inferior vena cava (IVC) with features consistent with an IVC sarcoma. On PET scan, there was moderate grade heterogeneous activity related to the IVC mass, again suggestive of IVC sarcoma. Also, there was an intense uptake at gastroesophageal junction which was proven to be esophageal carcinoma on histology. Patient did not consent for biopsy of IVC lesion due to the risk involved in the procedure hence treated conservatively for edema with moderate improvement and received radiotherapy for esophageal carcinoma with good tolerance.
Conclusion: Multiple malignancies are uncommon and a long-term meticulous follow is required to diagnose second malignancy at early stage to reduce mortality rate. To our knowledge, this is the first ever case of this combination of primary malignancies with IVC sarcoma being a rare tumor.

Keywords: Inferior vena cava, Leiomyosarcoma, Multiple Primary cancers


Introduction

In last three decades, there have been dramatic improvements in cancer survival, mainly due to advances in treatment and the increased detection of cancer at an early stage. However, incidence of multiple primary malignancies has increased in recent decades. More recently in clinical trials and case control studies have shown a better understanding of risk factors for the development of multiple primary cancers.

Cancer patients have a 20% greater risk of a new primary cancer compared with the general population. Also, second cancers have become a leading cause of death among long-term cancer survivors. The occurrence of a second cancer can be expected but third or higher order malignancies are rare [4].


Case Report

An 86-year-old female presented with progressive development of bilateral lower limbs pitting edema along with gradual increase in her weight from 85 kg to 102 kg over 6 months. This was associated with mild shortness of breath on exertion developing over one year. She did not report any chest pain, orthopnea or paroxysmal nocturnal dyspnea. She had past history of breast cancer treated with left sided mastectomy and left axillary lymph nodes (LNs) clearance along with postoperative radiotherapy. Ca Breast was 50 mm mass, grade 1, estrogen receptor (ER) positive and HER2 (human epidermal growth factor receptor 2) negative invasive ductal cell carcinoma with 12 positive axillary LNs. She was also commenced on adjuvant therapy with Tamoxifen. Her other medical history included type 2 diabetes mellitus, hypertension and Barrett's oesophagus. Her medications included amlodipine, pioglitazone, metformin, and tamoxifen.

On examination, her vital signs were within normal limits. Cardiovascular and respiratory examinations were unremarkable. However, a mass was palpable in epigastrium on deep palpation.

Her ECG showed normal sinus rhythm with no signs of right or left ventricular hypertrophy. This was subsequently confirmed by echocardiogram with no significant structural abnormality.

Computed tomography scan of abdomen revealed a large 56x53 mm heterogeneous mass within the IVC with imperceptible caval lumen and extended into the orifice of the left renal vein (Figure 1). Similar changes were noted where the right renal vein inserts into the IVC. Overall appearance favored an IVC sarcoma. There were no mesenteric or retroperitoneal nodes enlargement and there was no evidence for bone metastasis.

A PET scan was done which showed moderate grade heterogeneous activity associated with the fusiform mass in IVC again suggestive of sarcoma. Also, there was an intense activity at gastroesophageal junction highly suspicious for a primary tumor (Figure 2). On further investigations, gastroscopy showed large Hiatus hernia with moderate sized semi circumferential mass on cardia. The mass was not obstructive and was extending into distal esophagus for 5–7 mm. Esophageal biopsy proved an invasive moderately differentiated adenocarcinoma characterised by irregular malignant glands within fibrotic stroma.

Patient did not provide consent to have biopsy of IVC lesion due to the risk involved in the procedure and opted for conservative management with frusemide with some improvement in her symptoms. Oncology and radiotherapy opinions were sought and she was deemed not suitable for aggressive chemotherapy for either of the lesions at that stage, however, received low dose radiotherapy for esophageal cancer with reasonable tolerance.


Cursor on image to zoom/Click text to open image

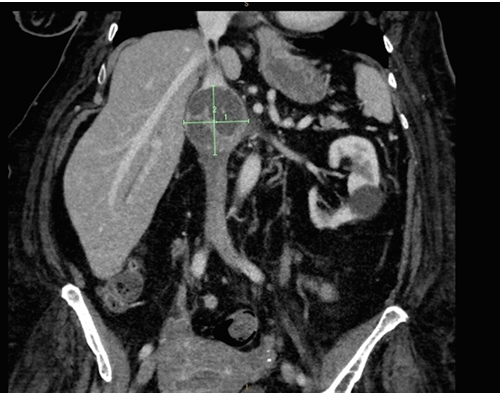

Figure 1: Fusiform mass within the lumen of inferior vena cava on computed tomography scan. An incidental left renal cyst is also visible.



Cursor on image to zoom/Click text to open image

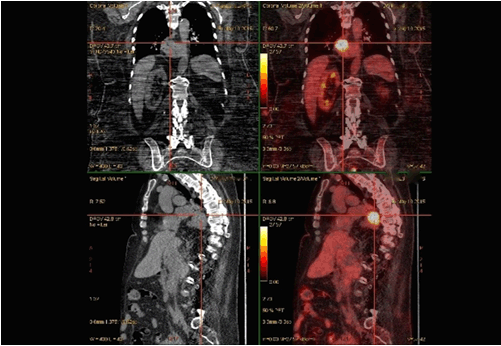

Figure 2: Intense activity at gastroesophageal junction on positron emission tomography (PET) scan.



Discussion

The exact incidence of triple tumors in one patient remains unknown [5]. A literature review on 1,104,269 cancer patients concluded that the prevalence of multiple primary malignancies occurs in 11.7% [6]. In another study encountered in 3–5% of malignant tumors, triple tumors occur in only 0.5%, quadruple tumors in 0.3% of malignant tumors [7]. Risk factors for multiple primary tumors include genetic, constitutional and environmental factors. None were detected in our patient. Unfortunately, our patient did not undergo detailed genetic testing to uncover possible underlying genetic mutations.

Malignant synchronous tumors (i.e., diagnosed simultaneously or with two months of each other) are predominantly seen in oropharyngeal area, gastrointestinal tract, lungs, breasts, urinary tract and genital organs. Usually, synchronous tumors have same histological features. Metachronous cancers (diagnosed in time interval >2 months) in addition to above mentioned locations are more frequently lymphoma and myeloma in patients with gastric cancer; colorectal cancer in patients with endometrial cancer and thyroid cancer in patients with respiratory system cancers [8]. The set of malignant tumors in our patient is unusual and does not fit any of the multiple primary cancer syndromes described thus so far.

Between January 1993 and September 2006, of 1429 patients registered to a Sarcoma Center, IVC sarcoma was seen only in one patient [9]. It is an uncommon tumor with poor prognosis, however, with an aggressive surgical approach in association with the absence of metastasis a long-term survival or even cure can be expected [10] [11]. Tumor size is one of the main prognostic factors and five-year survival is observed in 30–53% of patients who undergo resection with free margins. It may be difficult to differentiate between a sarcoma of IVC and another soft tissue sarcoma of the retroperitoneum involving the IVC. The true sarcoma of IVC originates from smooth muscle cells of the vessel and its growth pattern may be either intra- or extraluminal, with possibility of invasion of adjacent structures [10].

According to the site involved IVC sarcomas are divided into 3 levels. Level 1 extends from the entry of the hepatic veins up to the right atrium. Level 2 comprises the area between the confluences of the renal and hepatic veins and, Level 3 is distal to the entry of renal veins to IVC [12] [13].

Non-invasive imaging modalities such as computed tomography scan, ultrasonography and magnetic resonance imaging scan are often used to diagnose these tumors. They provide valuable information regarding their origin, evaluating the presence of local invasion and excluding distant metastases. The sensitivity and specificity of CT in assessment of the tumors are 78% and 96% respectively and even higher with MRI (95–100%) [13]. Selective arteriography of the celiac trunk may also be performed in patients where hepatic invasion or metastasis is suspected and transesophageal echocardiography can exclude or verify intracardiac tumor extension [14].

Computed tomography scan typically reveal a retroperitoneal, lobulated, non-calcified mass, either with or without areas of low central attenuation resulting from necrosis or cystic degeneration, with no fat content and heterogeneous contrast enhancement [15].

Despite advancing imaging technology, a biopsy is still required for formal diagnosis. Histopathology of IVC sarcoma reveals spindle tumor cells, which are positive for markers of smooth muscle activity including vimentin, muscle actin, alpha-smooth muscle actin, and desmin [16].

In one study, it was found that the most useful sign for identifying a retroperitoneal mass as an IVC sarcoma was an imperceptible caval lumen. This was seen in 75% of sarcomas arising from the IVC but not in any case with an alternate diagnosis . This sign had both high positive and negative predictive values of 100% and 92% respectively. A negative embedded IVC sign is considered present if the IVC is displaced to the periphery of the mass, taking on a crescentic configuration which excludes IVC origin of the mass [11].

Prognosis of IVC Sarcoma
Even with radical surgery, 5-year and 10-year survival of 49.4% and 29.5% respectively has been reported. Surgery may simply provide palliation in some cases. Tumors of the retrohepatic IVC tend to present earlier as a result of pressure exerted on surrounding structures. A superior prognosis with 5-year and 10-year survival rates of 56.7% and 47.3% are reported. Abdominal pain, the clinical presence of a mass and the ability to achieve clear resection margins were noted to be favorable factors identified by the registry whereas poor prognostic indicators include high-grade tumors, suprahepatic tumors, and presentation with IVC occlusion or Budd-Chiari syndrome. The role of chemotherapy and radiotherapy in the treatment of IVC leiomyosarcoma, either as a primary modality or as an adjuvant, remains to be proven [17].


Conclusion

Multiple malignancies occur rarely. The etiology remains controversial and a large number of cancer patients have to be followed for long periods to obtain adequate data about the development of subsequent additional malignancies. To our knowledge, this is the first detected case with this combination of primary cancers. An imperceptible inferior vena cava (IVC) at the point of maximal contact with a retroperitoneal mass was the most useful CT feature for predicting the origin of IVC sarcoma. A negative embedded organ sign was useful for excluding IVC origin. Knowledge of these CT features may assist with preoperative planning.


References
  1. Alexander A, Rehders A, Raffel A, Poremba C, Knoefel WT, Eisenberger CF. Leiomyosarcoma of the inferior vena cava: radical surgery and vascular reconstruction. World J Surg Oncol 2009 Jun 26;7:56.   [CrossRef]   [Pubmed]    Back to citation no. 1
  2. Saptarshi B, Arpit A, Suhaib C, Saju J. Leiomyosarcoma of the Inferior Vena Cava - radical resection, vascular reconstruction and challenges: acase report and review of relevant literature. World J Oncol 2013 April;4(2):107–13.    Back to citation no. 2
  3. Aram B, Zirak AT, Delan AB. A rare reteropritonealmass:leiomyosarcoma of inferior vena cava. World Journal of Cardiovascular Surgery 2014;4:51–5.    Back to citation no. 3
  4. Soerjomataram I, Coebergh JW. Epidemiology of multiple primary cancers. In: Verma M ed. Methods in Molecular Biology. Humana Press; 2009. p. 85–105.    Back to citation no. 4
  5. Rosso S, De Angelis R, Ciccolallo L, et al. Multiple tumours in survival estimates. Eur J Cancer 2009 Apr;45(6):1080–94.   [CrossRef]   [Pubmed]    Back to citation no. 5
  6. Irimie A, Achimas-Cadariu P, Burz C, Puscas E. Multiple primary malignancies--epidemiological analysis at a single tertiary institution. J Gastrointestin Liver Dis 2010 Mar;19(1):69–73.   [Pubmed]    Back to citation no. 6
  7. Németh Z, Czigner J, Iván L, Ujpál M, Barabás J, Szabó G. Quadruple cancer, including triple cancers in the head and neck region. Neoplasma 2002;49(6):412–4.   [Pubmed]    Back to citation no. 7
  8. Olejniczak M, Snopkowska-Widerna D, Kutwin L, Zielinski KW. Multiple cancers syndrome: case report of synchronous appearance of four types of malignant cancer. Clin Exp Med Lett 2011;52(1-2);83–6.    Back to citation no. 8
  9. Mayer F, Aebert H, Rudert M, et al. Primary malignant sarcomas of the heart and great vessels in adult patients--a single-center experience. Oncologist 2007 Sep;12(9):1134–42.   [CrossRef]   [Pubmed]    Back to citation no. 9
  10. Dew J, Hansen K, Hammon J, et al. Leiomyosarcoma of the inferior vena cava: surgical management and clinical results. Am Surg 2005 Jun;71(6):497–501.   [Pubmed]    Back to citation no. 10
  11. Webb EM, Wang ZJ, Westphalen AC, Nakakura EK, Coakley FV, Yeh BM. Can CT features differentiate between inferior vena cava leiomyosarcomas and primary retroperitoneal masses? AJR Am J Roentgenol 2013 Jan;200(1):205–9.   [CrossRef]   [Pubmed]    Back to citation no. 11
  12. Kieffer E, Alaoui M, Piette JC, Cacoub P, Chiche L. Leiomyosarcoma of the inferior vena cava: experience in 22 cases. Ann Surg 2006 Aug;244(2):289–95.   [CrossRef]   [Pubmed]    Back to citation no. 12
  13. Ito H, Hornick JL, Bertagnolli MM, et al. Leiomyosarcoma of the inferior vena cava: survival after aggressive management. Ann Surg Oncol 2007 Dec;14(12):3534–41.   [CrossRef]   [Pubmed]    Back to citation no. 13
  14. Kyriazi MA, Stafyla VK, Chatzinikolaou I, et al. Surgical challenges in the treatment of leiomyosarcoma of the inferior vena cava: analysis of two cases and brief review of the literature. Ann Vasc Surg 2010 Aug;24(6):826.e13–7.   [CrossRef]   [Pubmed]    Back to citation no. 14
  15. Cantwell CP, Stack J. Abdominal aortic invasion by leiomyosarcoma. Abdom Imaging 2006 Jan-Feb;31(1):120–2.   [CrossRef]   [Pubmed]    Back to citation no. 15
  16. Nikaido T, Endo Y, Nimura S, Ishikura H, Ushigome S. Dumbbell-shaped leiomyosarcoma of the inferior vena cava with foci of rhabdoid changes and osteoclast-type giant cells. Pathol Int 2004 Apr;54(4):256–60.   [CrossRef]   [Pubmed]    Back to citation no. 16
  17. Abisi S, Morris-Stiff GJ, Scott-Coombes D, Williams IM, Douglas-Jones AG, Puntis MC. Leiomyosarcoma of the inferior vena cava: clinical experience with four cases. World J Surg Oncol 2006 Jan 4;4:1.   [Pubmed]    Back to citation no. 17
